See our work in action

Explore real examples of the automation, robotics, and vision systems we’ve engineered to solve complex manufacturing challenges.
Blue background with faint grid lines and a large, subtle gear symbol on the right side.
Gallery
Robotic staging and loading cell for automated grinding process, using an ACE-Fanuc Grinding Loader.
Enclosed automated cell with a yellow industrial robotic arm positioned above a fixture tray holding multiple metal components inside an aluminum frame enclosure.
Side view of a guarded automation cell showing a yellow robotic arm, conveyor rollers, and part fixtures inside a clear safety enclosure on a factory floor.

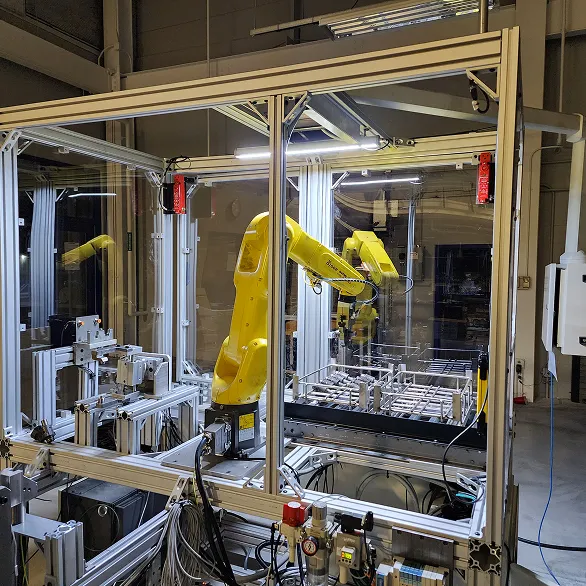

Automated manufacturing cell with a yellow robotic arm, pneumatic components, and metal fixtures arranged inside an aluminum extrusion enclosure.

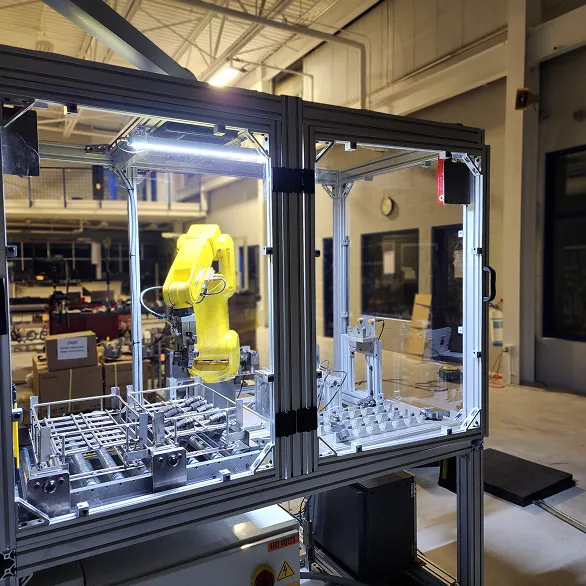

Front view of an enclosed robotic work cell with a yellow industrial robot loading or unloading parts from a fixture inside a transparent safety enclosure.
Automated cell using collaborative robots and custom automation solutions to install a steel ball into injector nozzles.
Enclosed automated workstation with a collaborative robotic arm positioned next to a vertical press and a fixture plate holding multiple metal parts inside a safety enclosure.
Control panel with a touchscreen interface and emergency stop button positioned in front of an enclosed automated cell containing a collaborative robotic arm and press equipment.
Wide view of a dual-station automated cell with two collaborative robotic arms, vertical presses, fixture tables, and a central control panel inside a factory environment.
Automated conveyor sections used to move staged products through a clean room environment.
Top-down CAD layout showing an automated material handling cell with conveyors, lift stations, and equipment footprints annotated with arrows and dimensions.
3D rendering of an enclosed conveyor system installed through a wall opening, with guarded panels and an adjacent electrical control cabinet.

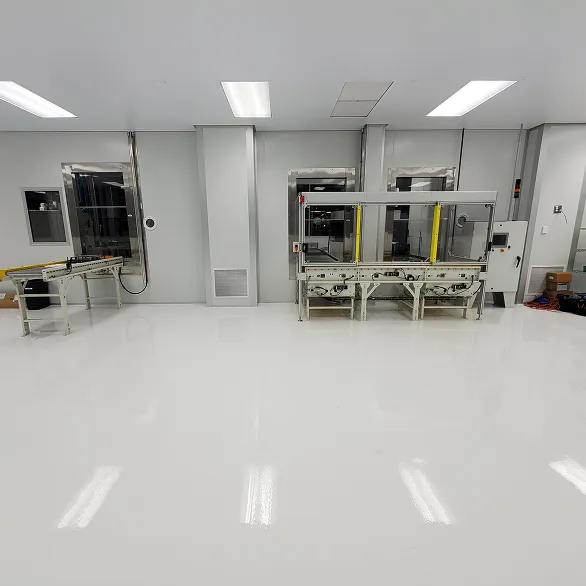

Wide view of a clean room with white epoxy flooring, overhead lighting, a conveyor line, and enclosed automation equipment along the wall.
Roller conveyor extending through a stainless-steel wall pass-through with a fixture tray positioned on the conveyor surface.
Front view of an enclosed conveyor system with clear guarding panels, yellow vertical supports, and integrated sensors beneath the conveyor.
Automated engine test cart docking station. Aids in operator processing to ensure safety and complete processes are followed.
Technical drawing showing multiple orthographic views and dimensions of a mechanical clamping assembly with mounting plates and adjustment hardware.

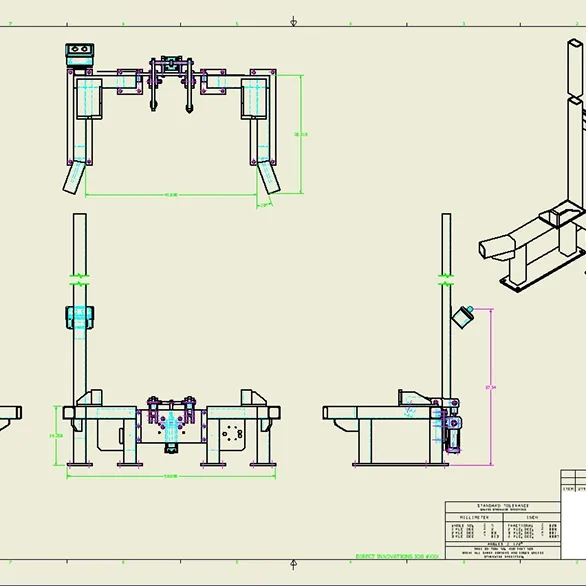

Technical drawing displaying front, side, and isometric views of a structural frame assembly with vertical supports and a mounted clamping mechanism.
3D rendered model of a yellow steel support frame with mounting feet and a central clamping fixture installed between two support arms.
Close-up 3D rendering of a clamping mechanism with adjustable arms, bolts, and a pneumatic cylinder mounted between two yellow steel supports.

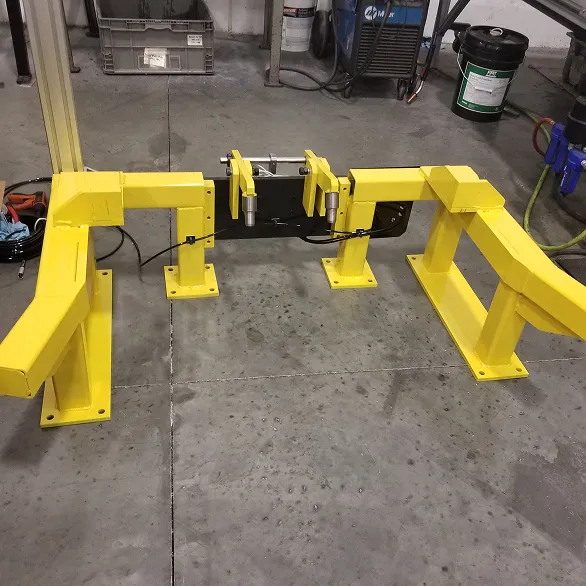

Yellow steel docking fixture with four floor-mounted supports and adjustable clamping arms positioned on a concrete shop floor.
Front view of a yellow steel docking station with central pneumatic cylinder, sensor components, and mounting brackets.

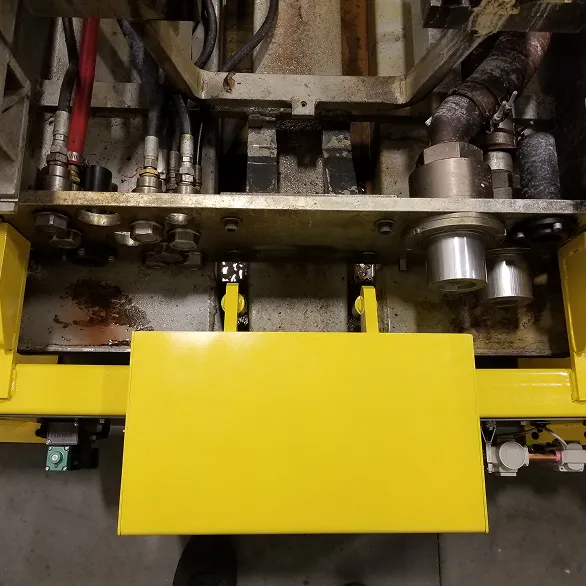

Close-up view of a yellow docking fixture secured beneath a large industrial assembly with visible hydraulic lines and metal housings.
IFSM augmented work cell utilizing projection systems and 3D imaging cameras to aid in operator work processes.
Close-up of workstation monitor displaying Phoenix Technologies logo beside an assembly fixture and handheld torque driver within an enclosed work cell.
Automated work cell with aluminum framing, green parts bins, central control panel with touchscreen, and assembly fixture table inside a manufacturing lab.
Automatic marking station with interchangeable tooling.
Enclosed aluminum frame machine with clear polycarbonate panels and a front access door, positioned on a factory floor.
Angled view of an aluminum-framed enclosure with transparent panels and a black lower cabinet section inside a manufacturing facility.

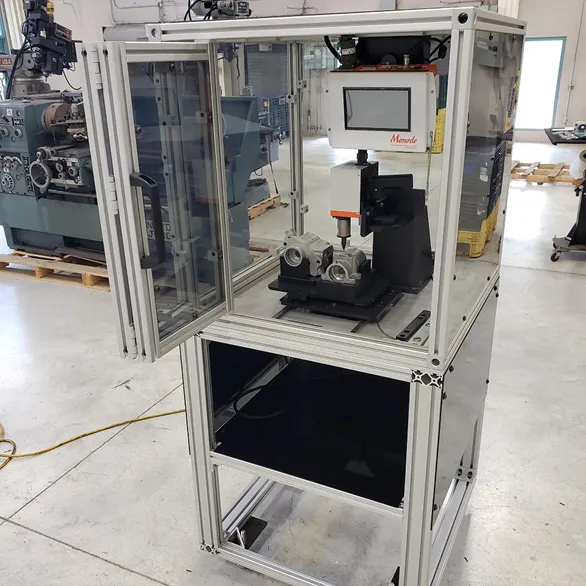

Open access door on a guarded marking station showing a mounted component fixture and vertical marking head inside the enclosure.

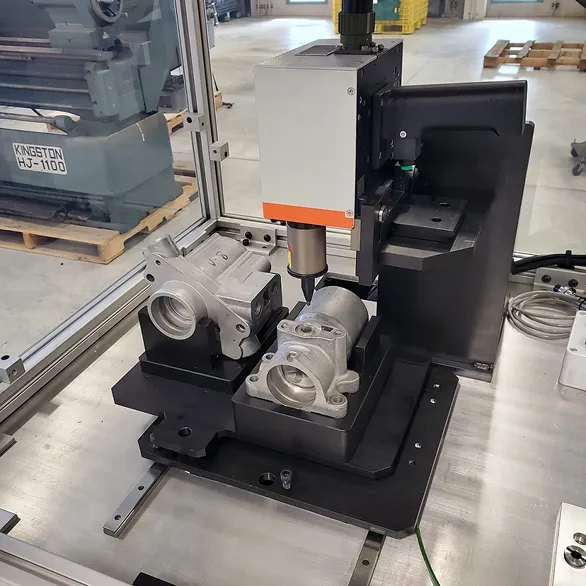

Close-up of two cast metal housings secured in a black fixture beneath a vertical marking head inside a safety enclosure.
Interior view of an automated marking station with cast components clamped in a fixture, push-button controls mounted on the right side panel.
Robotic tray loading system, utilizing collaborative robot and automation to feed parts for processing.
Enclosed robotic work cell with aluminum frame, clear panels, collaborative robot arm, control screen, and Phoenix Technologies logo on the front panel.
Angled view of enclosed robotic work cell showing collaborative robot arm, control unit with emergency stop button, and Phoenix Technologies and Cummins logos on the cabinet.
Close view of collaborative robot arm with blue joint covers mounted inside an aluminum framed enclosure next to white trays with circular recesses.
Top view of collaborative robot arm positioned above two white trays with numbered circular pockets inside a clear panel enclosure.
